Accura 2700D HMI Module

Smart Motor Management System / Integrated Incoming-Unit HMI Module for MCCs

Connected to Accura 2700M, Accura 2700D is the HMI module that displays data on the entire MCC
and has a touchscreen for motor control.

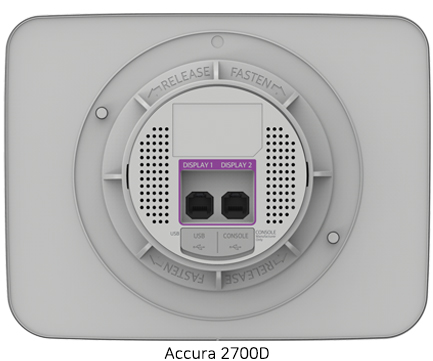

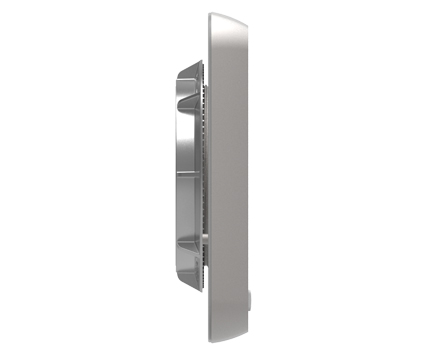

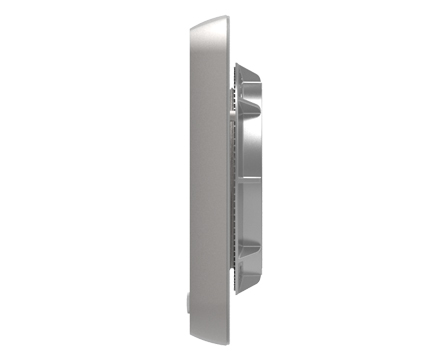

Accura 2700D

Integrated Incoming-Unit HMI Module

Connected to Accura 2700M, Accura 2700D is the HMI module that displays data on the entire MCC and has a touchscreen for motor control.

Overview

Features

Specifications

Quick Guide

FAQ

Download

Overview
Features
Specifications
Quick Guide
FAQ
Download

Overview

Deals with Management Need for Consumption Power of Motor and Improves MCC Space Efficiency

Precision Measurement to meet IEC 61557-12 Class 0.5

Blocks the Spread of Accident by Ground Current through Accurate Measurement of Ground Current

Provides Two Type Modules(Protection Module/Protection&Control Module) for Selection According to Purpose

Diversification of Rated Current of Motor-Unit Protection[Control] Module for MCC Space Efficiency and Precision Measurement

Providing power/energy based on inverter output voltage measurement of inverter-driving motor-unit

Provides Convenience for Maintenance

HMI Module that Supports Device Redundancy

Excellent Field Analysis through Integrated HMI Module with Color Touch TFT LCD

LOP Control Module and LOP Control Gateway for Communication with LOP(Local Operating Panel)

Communication Redundancy with Improved Communication Reliability between Devices

Supports Device Redundancy for the Field that Requires High Reliability

Provides Setup Manager for All Setting and Commissioning through Communication

Provides Control Logic Editor to Provide Control Flexibility

Possible to Implement MCC Level Control Logic

Incoming-Unit Integrated Module HMI Display

Accura 2700M Link action

Display information of entire MCC

Support setup of entire MCC

Download Catalog

AccuraSM Program Download

Accura 2700/2750

Accura 2700M Accura 2700D Accura 2750P[C] Accura 2750INV/VOL

Accura 2700/2750

Accura 2700D Integrated Incoming-Unit HMI Module

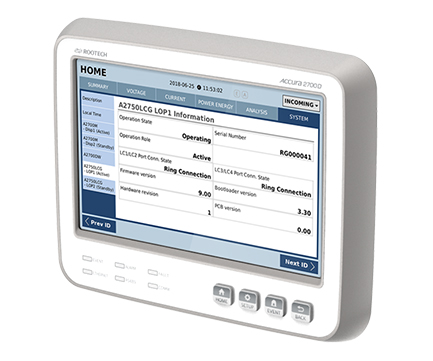

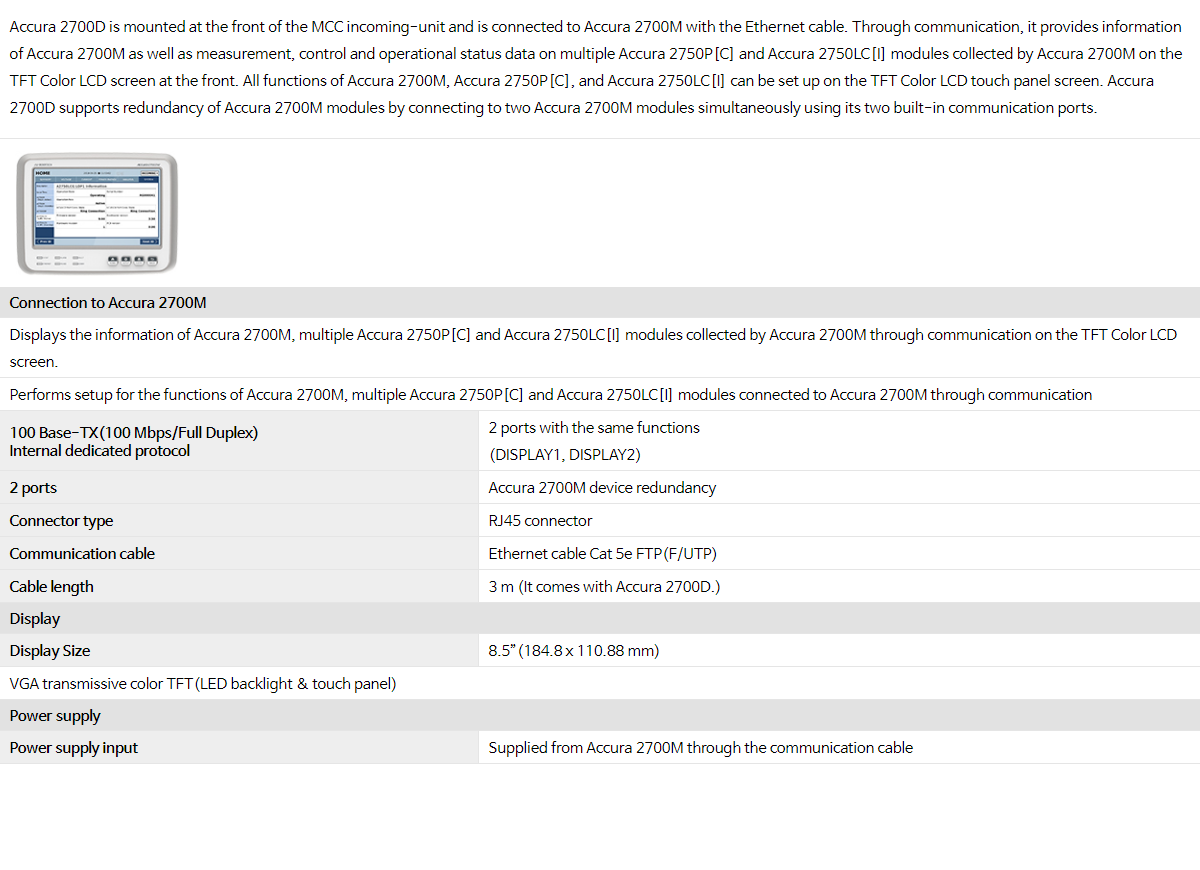

Accura 2700D is mounted at the front of the MCC incoming-unit and is connected to Accura 2700M with the Ethernet cable. Through communication, it provides information of Accura 2700M as well as measurement, control and operational status data on multiple Accura 2750P[C] and Accura 2750LC[I] modules collected by Accura 2700M on the TFT Color LCD screen at the front. All functions of Accura 2700M, Accura 2750P[C], and Accura 2750LC[I] can be set up on the TFT Color LCD touch panel screen. Accura 2700D supports redundancy of Accura 2700M modules by connecting to two Accura 2700M modules simultaneously using its two built-in communication ports.

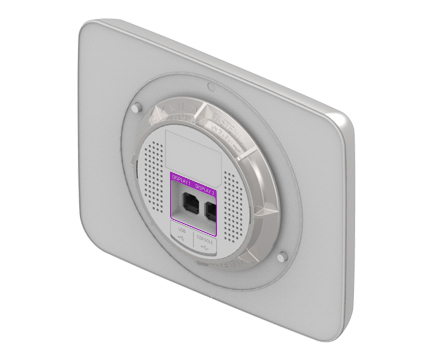

Connection to Accura 2700M
Displays the information of Accura 2700M, multiple Accura 2750P[C] and Accura 2750LC[I] modules collected by Accura 2700M through communication on the TFT Color LCD screen.
Performs setup for the functions of Accura 2700M, multiple Accura 2750P[C] and Accura 2750LC[I] modules connected to Accura 2700M through communication
100 Base-TX(100 Mbps/Full Duplex) Internal dedicated protocol			2 ports with the same functions (DISPLAY1, DISPLAY2)
2 ports			Accura 2700M device redundancy
Connector type			RJ45 connector
Communication cable			Ethernet cable Cat 5e FTP(F/UTP)
Cable length			3 m (It comes with Accura 2700D.)

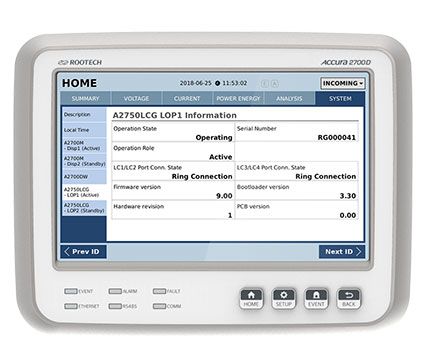

Display
Display Size			8.5”(184.8 x 110.88 mm)
VGA transmissive color TFT(LED backlight & touch panel)
Power supply
Power supply input			Supplied from Accura 2700M through the communication cable

Accura 2700D Integrated Incoming-Unit HMI Module

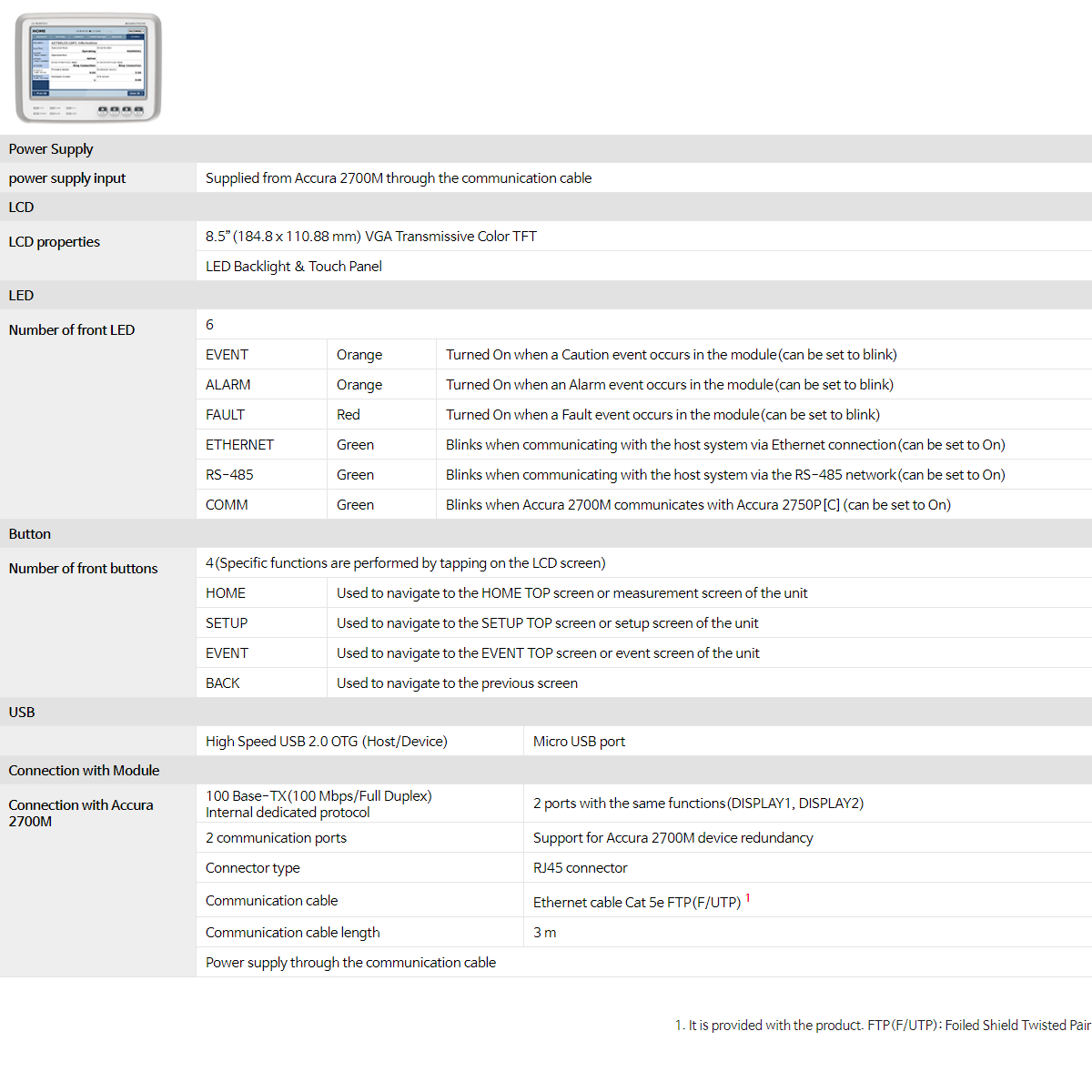

Power Supply
power supply input	Supplied from Accura 2700M through the communication cable
LCD
LCD properties	8.5”(184.8 x 110.88 mm) VGA Transmissive Color TFT
	LED Backlight & Touch Panel
LED
Number of front LED	6
	EVENT	Orange	Turned On when a Caution event occurs in the module(can be set to blink)
	ALARM	Orange	Turned On when an Alarm event occurs in the module(can be set to blink)
	FAULT	Red	Turned On when a Fault event occurs in the module(can be set to blink)
	ETHERNET	Green	Blinks when communicating with the host system via Ethernet connection(can be set to On)
	RS-485	Green	Blinks when communicating with the host system via the RS-485 network(can be set to On)
	COMM	Green	Blinks when Accura 2700M communicates with Accura 2750P[C](can be set to On)
Button
Number of front buttons	4(Specific functions are performed by tapping on the LCD screen)
	HOME	Used to navigate to the HOME TOP screen or measurement screen of the unit
	SETUP	Used to navigate to the SETUP TOP screen or setup screen of the unit
	EVENT	Used to navigate to the EVENT TOP screen or event screen of the unit
	BACK	Used to navigate to the previous screen

USB
	High Speed USB 2.0 OTG (Host/Device)	Micro USB port
Connection with Module
Connection with Accura 2700M	100 Base-TX(100 Mbps/Full Duplex) Internal dedicated protocol	2 ports with the same functions(DISPLAY1, DISPLAY2)
	2 communication ports	Support for Accura 2700M device redundancy
	Connector type	RJ45 connector
	Communication cable	Ethernet cable Cat 5e FTP(F/UTP)¹
	Communication cable length	3 m
	Power supply through the communication cable

1. It is provided with the product. FTP(F/UTP): Foiled Shield Twisted Pair

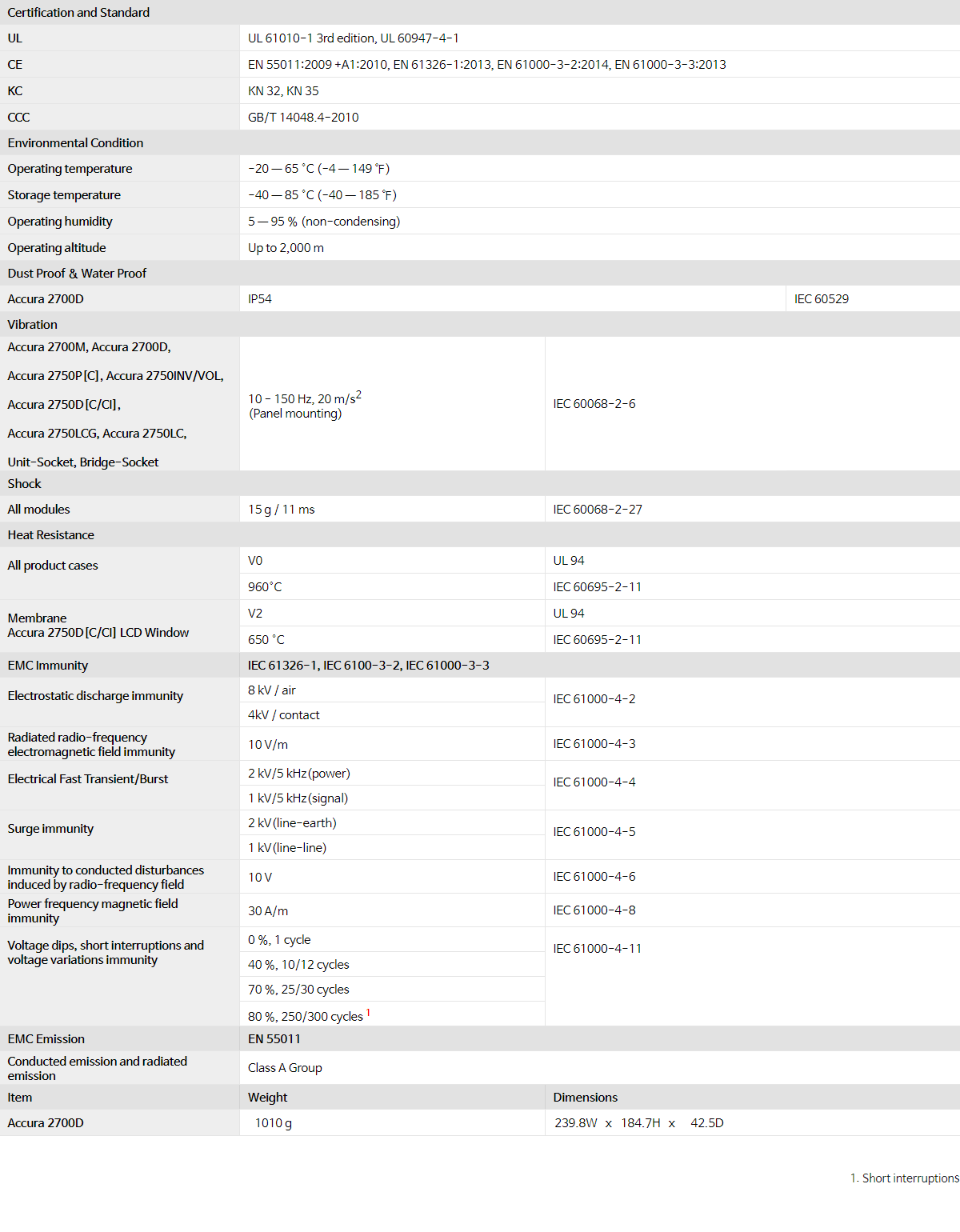

General Specifications

Certification and Standard
UL	UL 61010-1 3rd edition, UL 60947-4-1
CE	EN 55011:2009 +A1:2010, EN 61326-1:2013, EN 61000-3-2:2014, EN 61000-3-3:2013
KC	KN 32, KN 35
CCC	GB/T 14048.4-2010
Environmental Condition
Operating temperature	-20 — 65 °C (-4 — 149 ℉)
Storage temperature	-40 — 85 °C (-40 — 185 ℉)
Operating humidity	5 — 95 % (non-condensing)
Operating altitude	Up to 2,000 m
Dust Proof & Water Proof
Accura 2700D	IP54		IEC 60529
Vibration
Accura 2700M, Accura 2700D, Accura 2750P[C], Accura 2750INV/VOL, Accura 2750D[C/CI], Accura 2750LCG, Accura 2750LC, Unit-Socket, Bridge-Socket	10 - 150 Hz, 20 m/s² (Panel mounting)	IEC 60068-2-6
Shock
All modules	15 g / 11 ms	IEC 60068-2-27
Heat Resistance
All product cases	V0	UL 94
	960°C	IEC 60695-2-11
Membrane Accura 2750D[C/CI] LCD Window	V2	UL 94
	650 °C	IEC 60695-2-11
EMC Immunity	IEC 61326-1, IEC 6100-3-2, IEC 61000-3-3
Electrostatic discharge immunity	8 kV / air	IEC 61000-4-2
	4kV / contact
Radiated radio-frequency electromagnetic field immunity	10 V/m	IEC 61000-4-3
Electrical Fast Transient/Burst	2 kV/5 kHz(power)	IEC 61000-4-4
	1 kV/5 kHz(signal)
Surge immunity	2 kV(line-earth)	IEC 61000-4-5
	1 kV(line-line)
Immunity to conducted disturbances induced by radio-frequency field	10 V	IEC 61000-4-6
Power frequency magnetic field immunity	30 A/m	IEC 61000-4-8
Voltage dips, short interruptions and voltage variations immunity	0 %, 1 cycle	IEC 61000-4-11
	40 %, 10/12 cycles
	70 %, 25/30 cycles
	80 %, 250/300 cycles¹
EMC Emission	EN 55011
Conducted emission and radiated emission	Class A Group
Item	Weight	Dimensions
Accura 2700D	1010 g	239.8W x 184.7H x 42.5D
