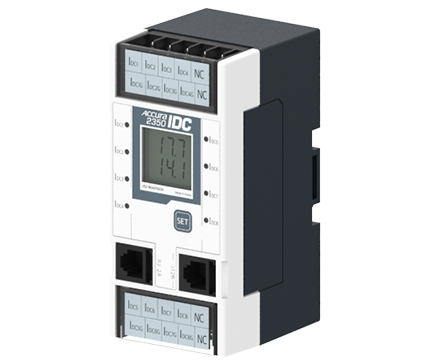

Accura 2350-IDC

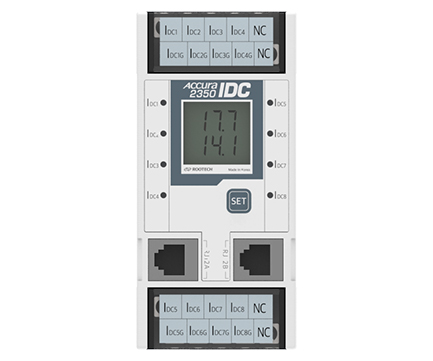

Accura 2350-IDC  DC Current Measuring Module
IDC Module

Accura 2350-IDC module measures 4 - 20 mA DC current and provides event notifications
when overcurrent and undercurrent events occur.

Accura 2350-IDC
IDC Module

Accura 2350-IDC module measures 4 - 20 mA DC current and provides event notifications when overcurrent and undercurrent events occur.

Overview
Features

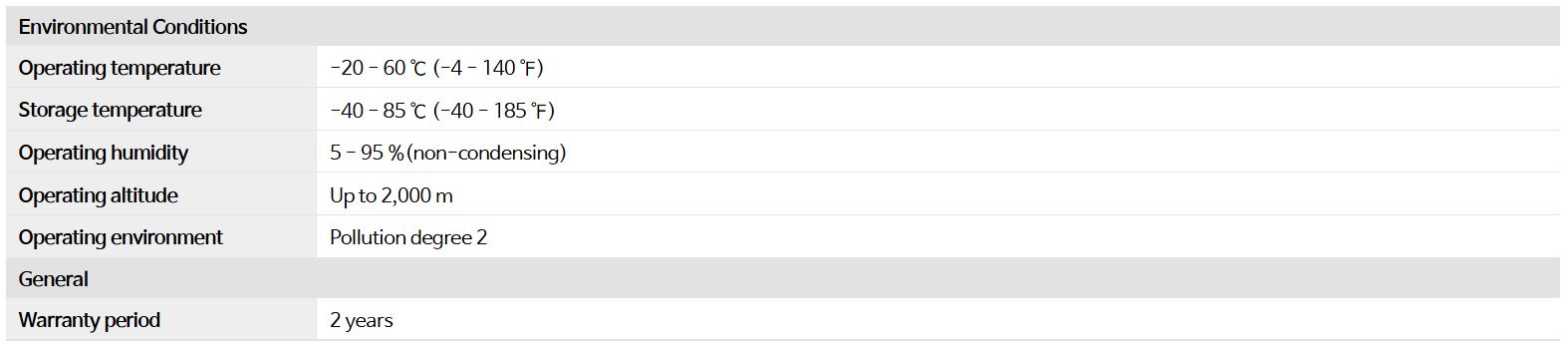

Specifications
FAQ
Download
Overview

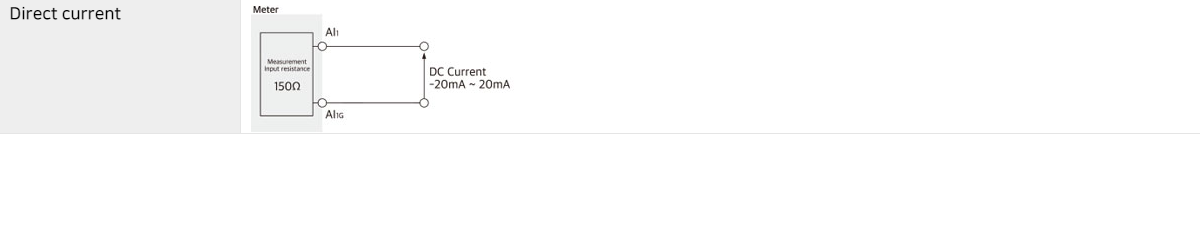

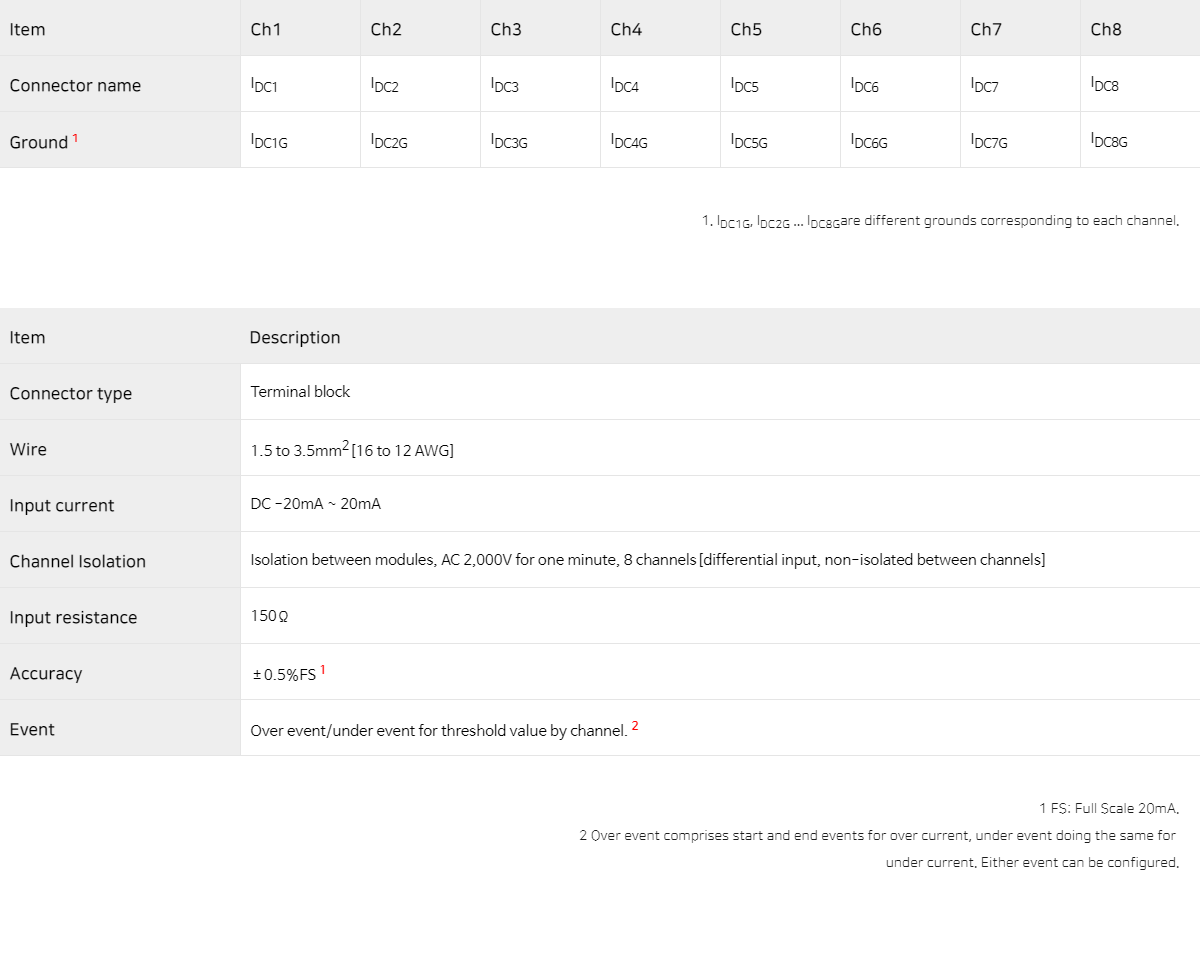

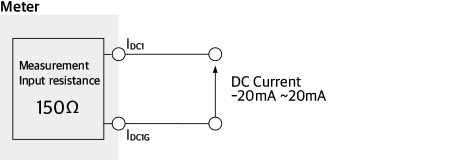

DC current measurement (-20 mA — 20 mA): 8-channel differential inputs, non-isolated between channels
Isolated between modules, AC 2,000 V for one minute
An "Over" event occurs when the current rises above the set threshold value.
An "Under" event occurs when the current drops below the set threshold value.
Download Catalog
