Accura 2550GW[M] Gateway module

[Multi-Channel]Communication Gateway Module

Accura 2550GW[M] Gateway module provides data collected from devices
supporting RS-485 communication using the Modbus RTU protocol.

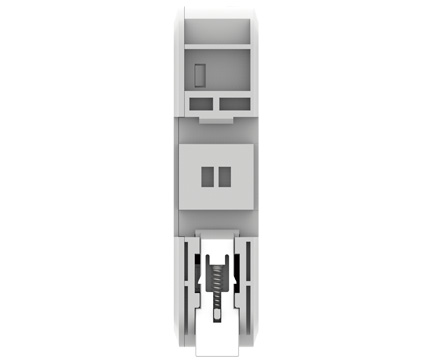

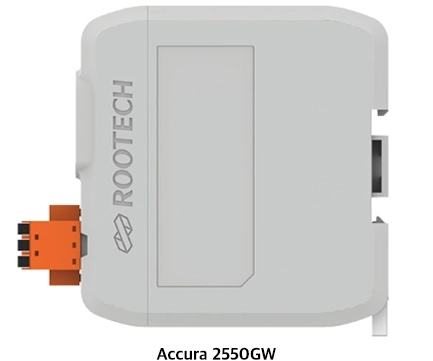

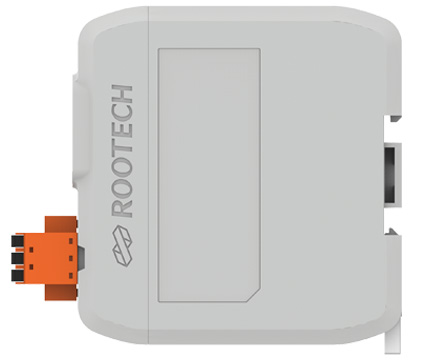

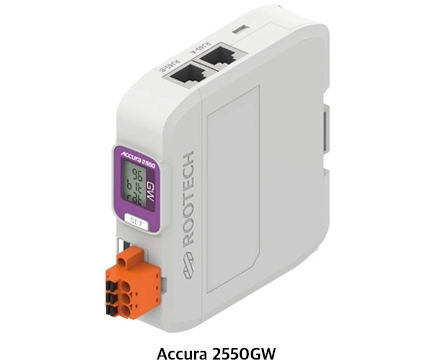

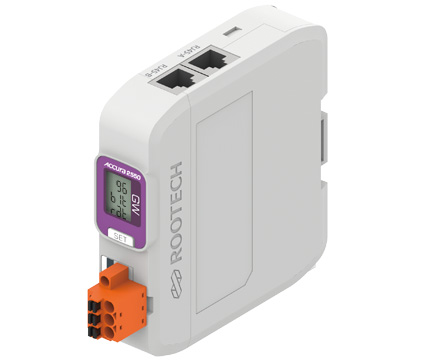

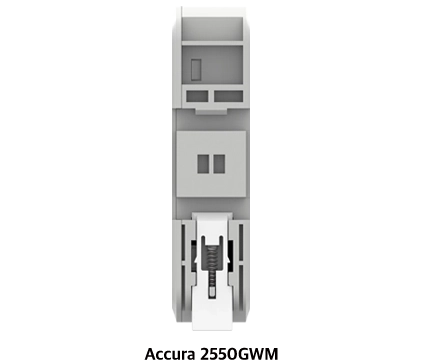

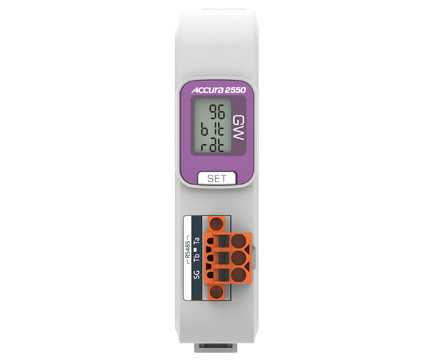

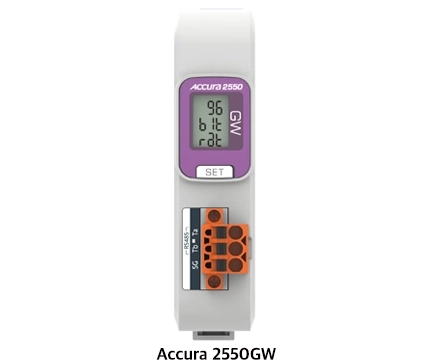

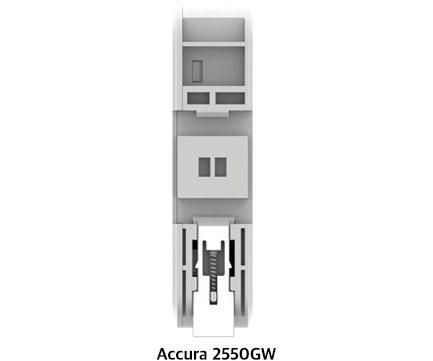

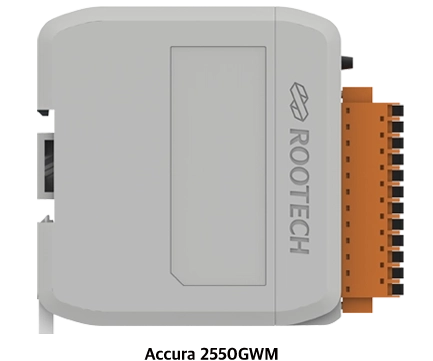

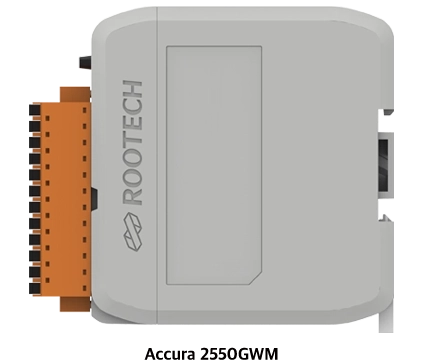

Accura 2550GW[M]

[Multi-Channel]Communication Gateway Module

Accura 2550GW[M] Gateway module provides data collected from devices supporting RS-485 communication using the Modbus RTU protocol.

Overview

Features

Specifications

FAQ

Download

Overview
Features
Specifications
FAQ
Download

Overview

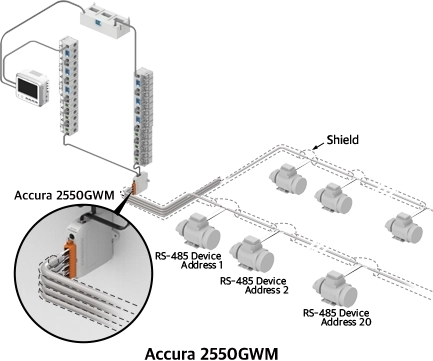

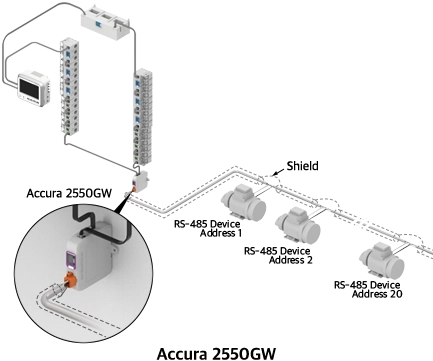

Accura 2550GW[M] module collects data from peripheral devices supporting RS-485 communication and transmits the collected data to Accura 2500 device

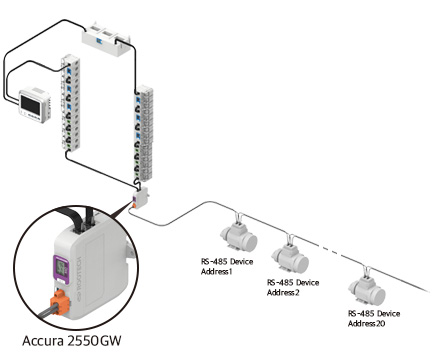

With one or four^*RS-485 communication ports, Accura 2550GW[M] can collect up to 60 data items from devices using different communication protocols

It is possible to set a timeout period for a response packet.

It is possible to set a delay time between the completion of data collection and the start of the next data collection.

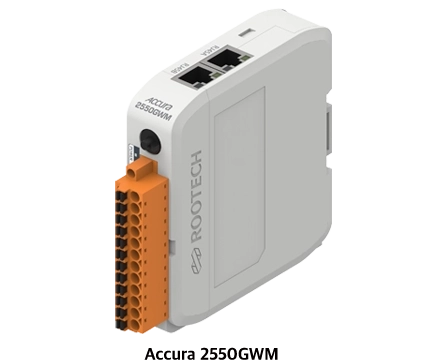

* Accura 2550GW module supports one port, and Accura 2550GWM module supports four ports.

Download Catalog

AccuraSM Program Download

Power/Cable Simulator Download

Smart Distribution Panel Digital Power Meter

Accura 2500/2550

Accura 2550GW[M]

Accura 2350GW[M]

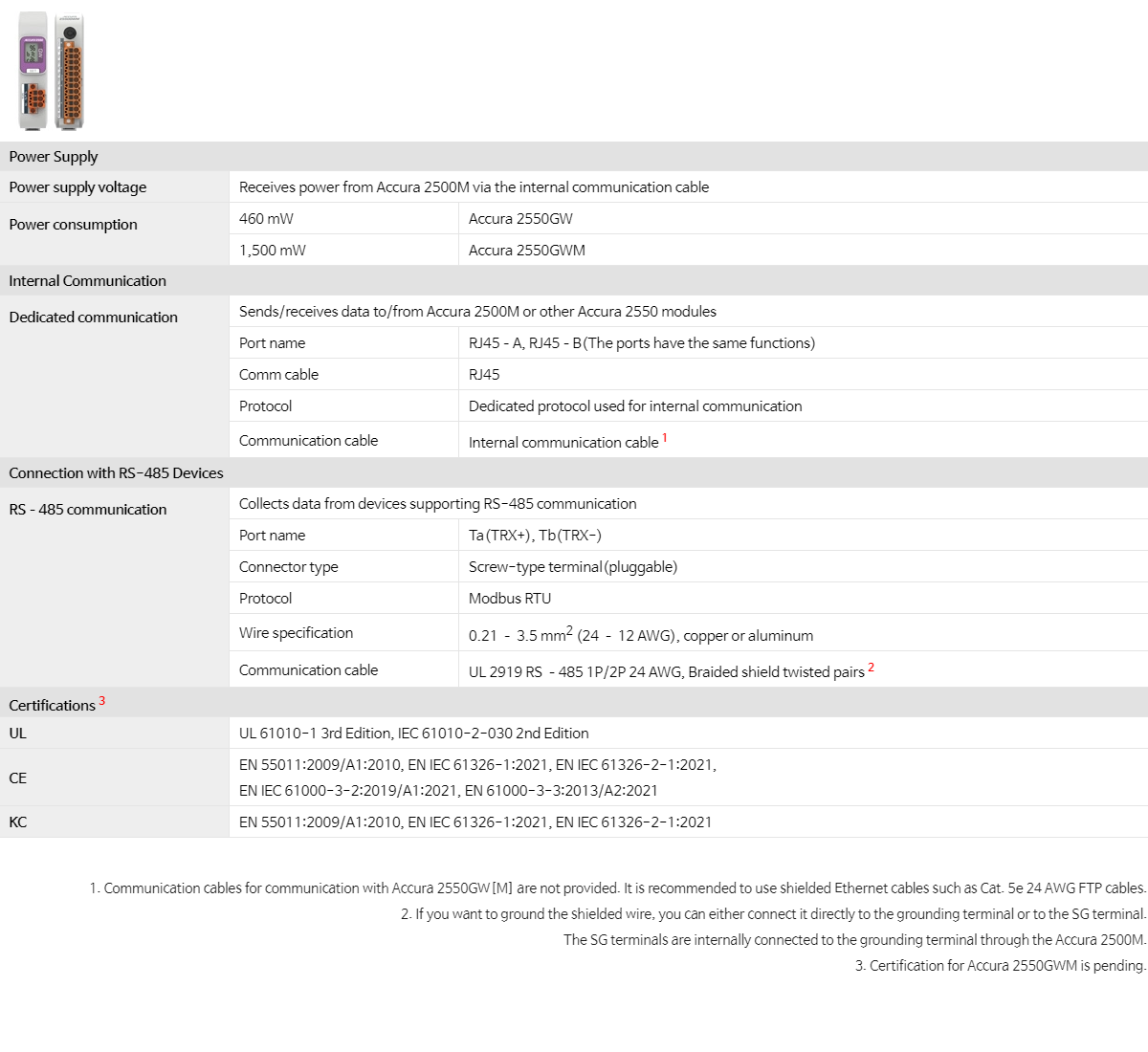

Power Supply
Power supply voltage	Receives power from Accura 2500M via the internal communication cable
Power consumption	460 mW	Accura 2550GW
	1,500 mW	Accura 2550GWM
Internal Communication
Dedicated communication	Sends/receives data to/from Accura 2500M or other Accura 2550 modules
	Port name	RJ45–A, RJ45–B(The ports have the same functions)
	Comm cable	RJ45
	Protocol	Dedicated protocol used for internal communication
	Communication cable	Internal communication cable¹
Connection with RS-485 Devices
RS–485 communication	Collects data from devices supporting RS-485 communication
	Port name	Ta(TRX+), Tb(TRX-)
	Connector type	Screw-type terminal(pluggable)
	Protocol	Modbus RTU
	Wire specification	0.21 – 3.5 mm² (24 – 12 AWG), copper or aluminum
	Communication cable	UL 2919 RS –485 1P/2P 24 AWG, Braided shield twisted pairs²
Certifications³
UL	UL 61010-1 3rd Edition, IEC 61010-2-030 2nd Edition
CE	EN 55011:2009/A1:2010, EN IEC 61326-1:2021, EN IEC 61326-2-1:2021, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021
KC	EN 55011:2009/A1:2010, EN IEC 61326-1:2021, EN IEC 61326-2-1:2021

1. Communication cables for communication with Accura 2550GW[M] are not provided. It is recommended to use shielded Ethernet cables such as Cat. 5e 24 AWG FTP cables.
2. If you want to ground the shielded wire, you can either connect it directly to the grounding terminal or to the SG terminal.
The SG terminals are internally connected to the grounding terminal through the Accura 2500M.
3. Certification for Accura 2550GWM is pending.

Environmental Conditions

function
Data Collection	Accura 2550GW[M] module collects data from peripheral devices supporting RS-485 communication and transmits the collected data to Accura 2500 device

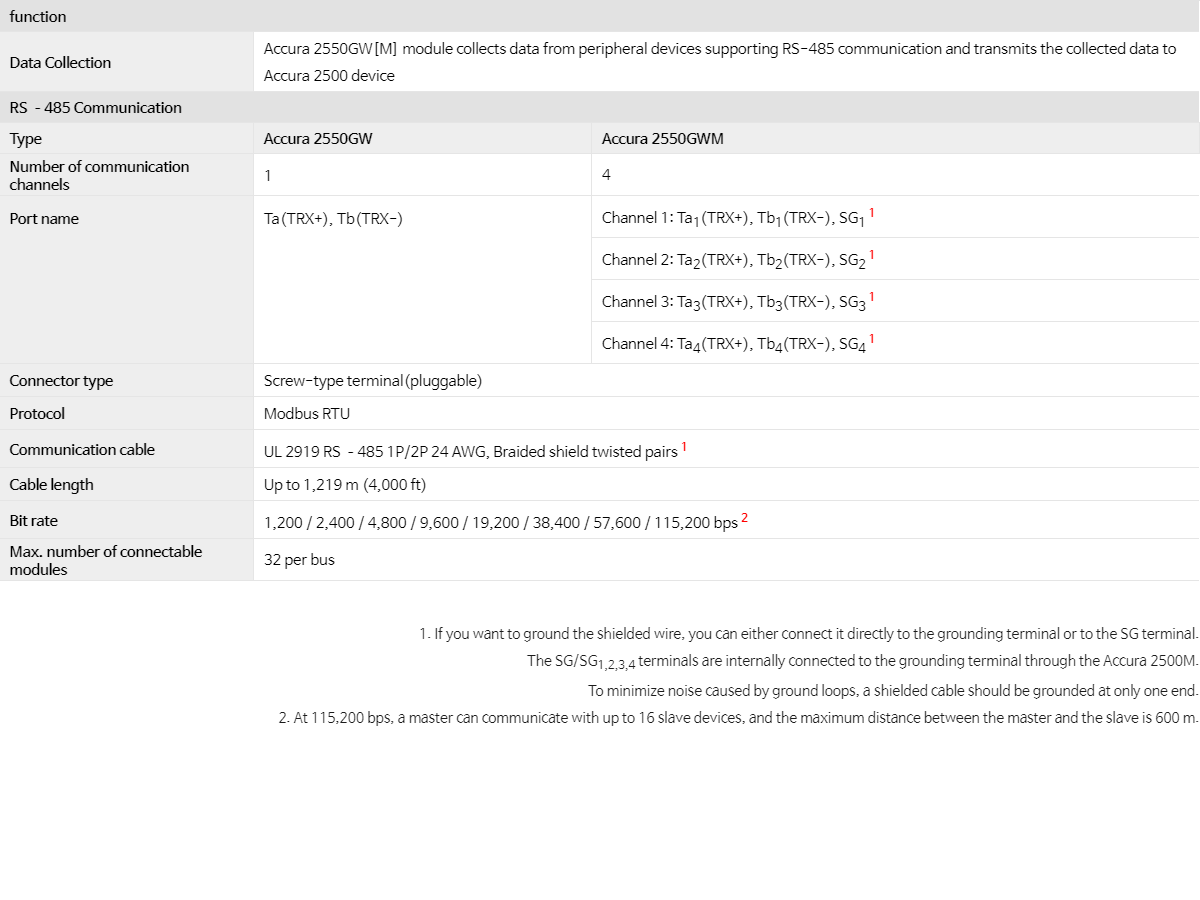

RS –485 Communication

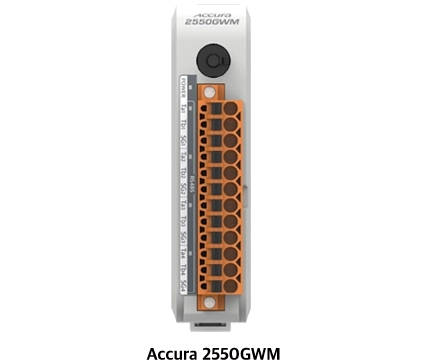

Type	Accura 2550GW	Accura 2550GWM
Number of communication channels	1	4
Port name	Ta(TRX+), Tb(TRX-)	Channel 1: Ta₁(TRX+), Tb₁(TRX-), SG₁¹
		Channel 2: Ta₂(TRX+), Tb₂(TRX-), SG₂¹
		Channel 3: Ta₃(TRX+), Tb₃(TRX-), SG₃¹
		Channel 4: Ta₄(TRX+), Tb₄(TRX-), SG₄¹
Connector type	Screw-type terminal(pluggable)
Protocol	Modbus RTU
Communication cable	UL 2919 RS –485 1P/2P 24 AWG, Braided shield twisted pairs¹
Cable length	Up to 1,219 m (4,000 ft)
Bit rate	1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps²
Max. number of connectable modules	32 per bus

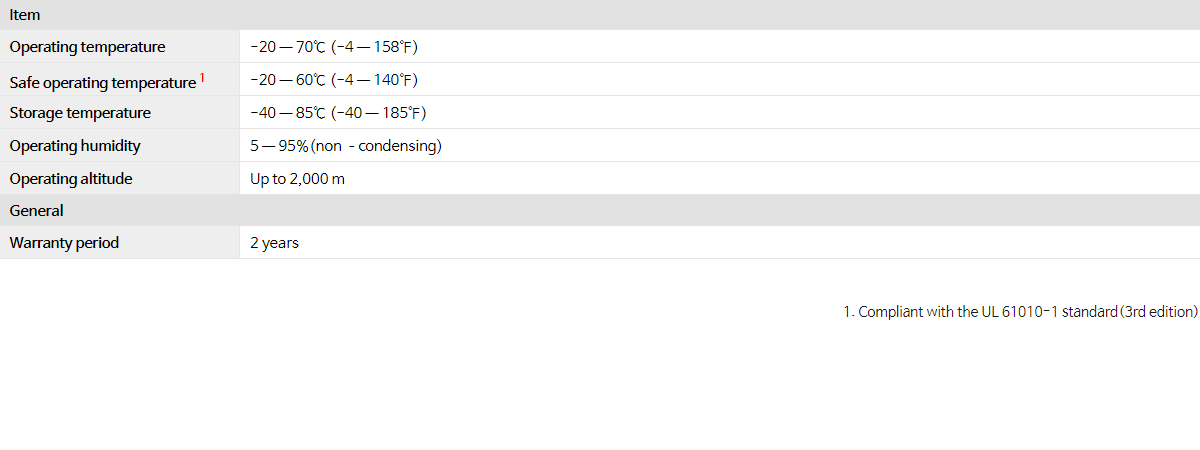

Item
Operating temperature	-20 ― 70℃ (-4 ― 158℉)
Safe operating temperature¹	-20 ― 60℃ (-4 ― 140℉)
Storage temperature	-40 ― 85℃ (-40 ― 185℉)
Operating humidity	5 ― 95%(non –condensing)
Operating altitude	Up to 2,000 m
General
Warranty period	2 years
