Accura 2550VOL

Mixed Power Voltage Measuring Module

Accura 2550VOL measures the voltage of auxiliary power supplies in a mixed power system
and provides the data to connected modules to measure power.

Accura 2550VOL

Mixed Power Voltage Measuring Module

Accura 2550VOL measures the voltage of auxiliary power supplies in a mixed power system and provides the data to connected modules to measure power.

Overview

Features

Specifications

FAQ

Download

Overview
Features
Specifications
FAQ
Download

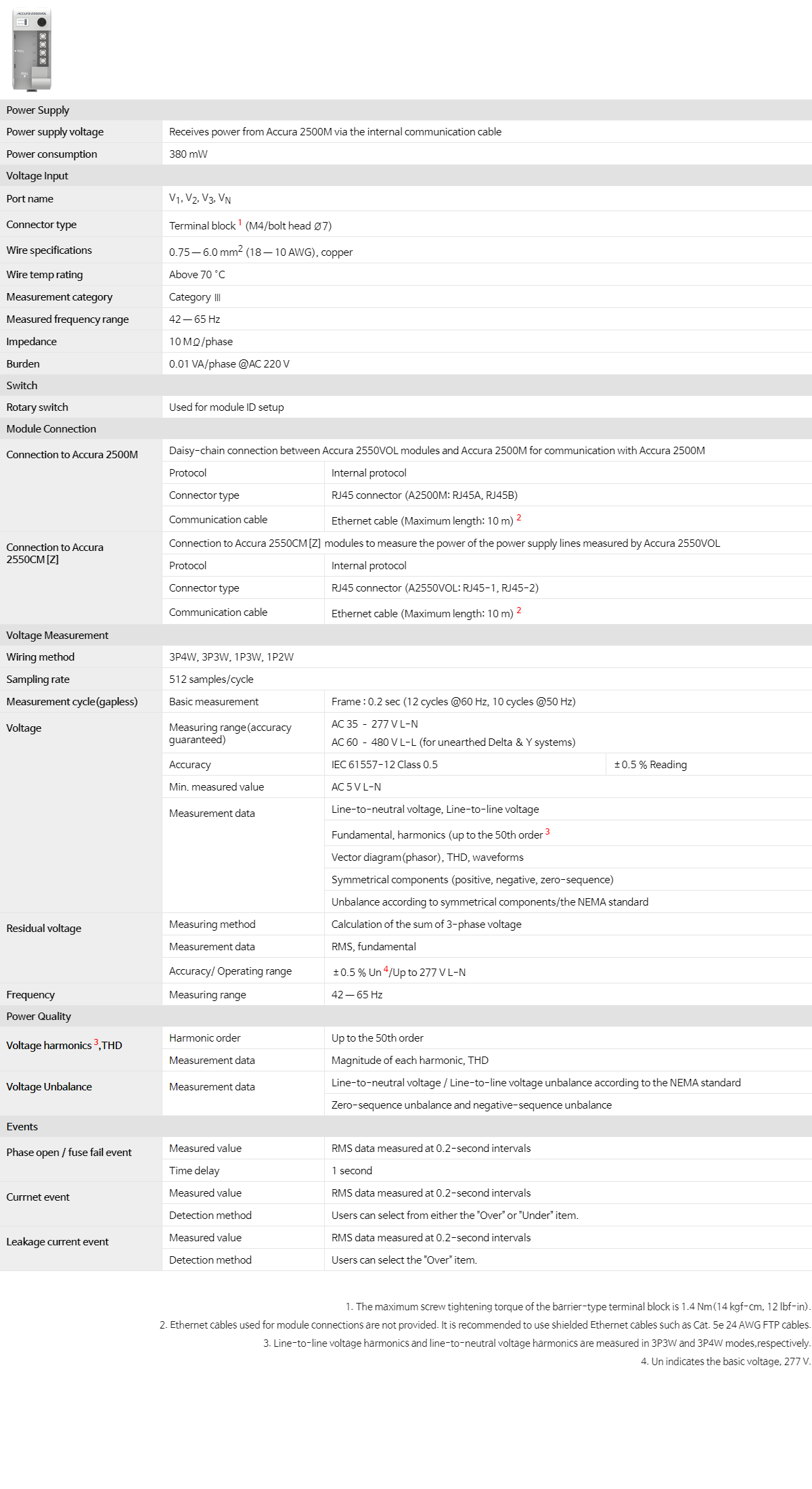

Accura 2550VOL

Power Supply
Power supply voltage	Receives power from Accura 2500M via the internal communication cable
Power consumption	380 mW
Voltage Input
Port name	V₁, V₂, V₃, V_N
Connector type	Terminal block¹ (M4/bolt head Ø7)
Wire specifications	0.75 ― 6.0 mm² (18 ― 10 AWG), copper
Wire temp rating	Above 70 °C
Measurement category	Category Ⅲ
Measured frequency range	42 ― 65 Hz
Impedance	10 MΩ/phase
Burden	0.01 VA/phase @AC 220 V
Switch
Rotary switch	Used for module ID setup
Module Connection
Connection to Accura 2500M	Daisy-chain connection between Accura 2550VOL modules and Accura 2500M for communication with Accura 2500M
	Protocol	Internal protocol
	Connector type	RJ45 connector (A2500M: RJ45A, RJ45B)
	Communication cable	Ethernet cable (Maximum length: 10 m)²
Connection to Accura 2550CM[Z]	Connection to Accura 2550CM[Z] modules to measure the power of the power supply lines measured by Accura 2550VOL
	Protocol	Internal protocol
	Connector type	RJ45 connector (A2550VOL: RJ45-1, RJ45-2)
	Communication cable	Ethernet cable (Maximum length: 10 m)²
Voltage Measurement
Wiring method	3P4W, 3P3W, 1P3W, 1P2W
Sampling rate	512 samples/cycle
Measurement cycle(gapless)	Basic measurement	Frame : 0.2 sec (12 cycles @60 Hz, 10 cycles @50 Hz)
Voltage	Measuring range(accuracy guaranteed)	AC 35 – 277 V L-N AC 60 – 480 V L-L (for unearthed Delta & Y systems)
	Accuracy	IEC 61557-12 Class 0.5	±0.5 % Reading
	Min. measured value	AC 5 V L-N
	Measurement data	Line-to-neutral voltage, Line-to-line voltage
		Fundamental, harmonics (up to the 50th order³
		Vector diagram(phasor), THD, waveforms
		Symmetrical components (positive, negative, zero-sequence)
		Unbalance according to symmetrical components/the NEMA standard
Residual voltage	Measuring method	Calculation of the sum of 3-phase voltage
	Measurement data	RMS, fundamental
	Accuracy/ Operating range	±0.5 % Un⁴/Up to 277 V L-N
Frequency	Measuring range	42 ― 65 Hz
Power Quality
Voltage harmonics³,THD	Harmonic order	Up to the 50th order
	Measurement data	Magnitude of each harmonic, THD
Voltage Unbalance	Measurement data	Line-to-neutral voltage / Line-to-line voltage unbalance according to the NEMA standard
		Zero-sequence unbalance and negative-sequence unbalance
Events
Phase open / fuse fail event	Measured value	RMS data measured at 0.2-second intervals
	Time delay	1 second
Currnet event	Measured value	RMS data measured at 0.2-second intervals
	Detection method	Users can select from either the "Over" or "Under" item.
Leakage current event	Measured value	RMS data measured at 0.2-second intervals
	Detection method	Users can select the "Over" item.

1. The maximum screw tightening torque of the barrier-type terminal block is 1.4 Nm(14 kgf-cm, 12 lbf-in).
2. Ethernet cables used for module connections are not provided. It is recommended to use shielded Ethernet cables such as Cat. 5e 24 AWG FTP cables.
3. Line-to-line voltage harmonics and line-to-neutral voltage harmonics are measured in 3P3W and 3P4W modes,respectively.
4. Un indicates the basic voltage, 277 V.

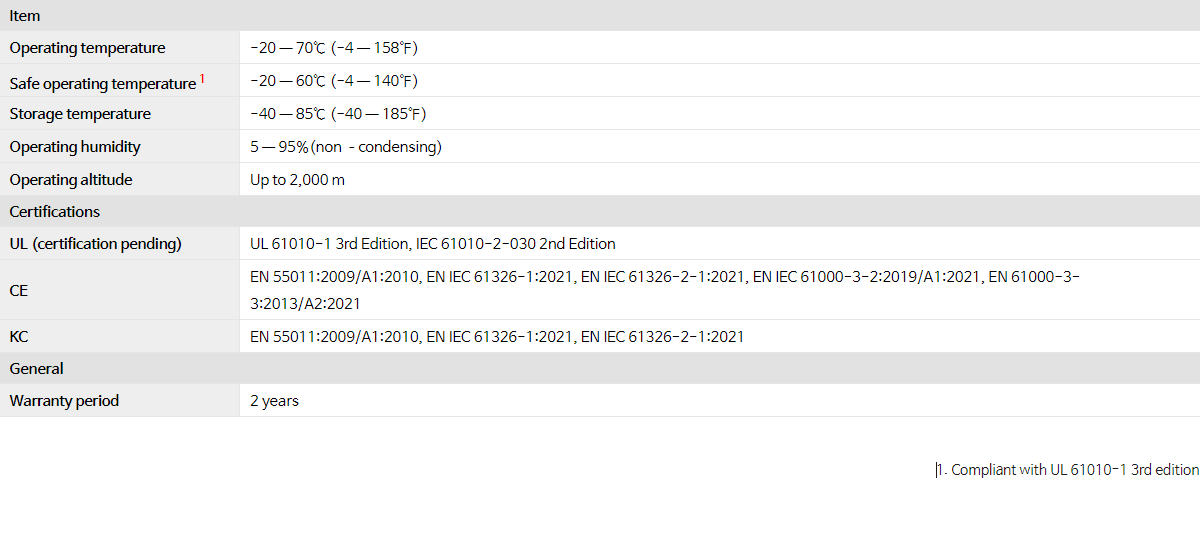

Environmental Conditions

Item
Operating temperature	-20 ― 70℃ (-4 ― 158℉)
Safe operating temperature¹	-20 ― 60℃ (-4 ― 140℉)
Storage temperature	-40 ― 85℃ (-40 ― 185℉)
Operating humidity	5 ― 95%(non –condensing)
Operating altitude	Up to 2,000 m
Certifications
UL (certification pending)	UL 61010-1 3rd Edition, IEC 61010-2-030 2nd Edition
CE	EN 55011:2009/A1:2010, EN IEC 61326-1:2021, EN IEC 61326-2-1:2021, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021
KC	EN 55011:2009/A1:2010, EN IEC 61326-1:2021, EN IEC 61326-2-1:2021
General
Warranty period	2 years

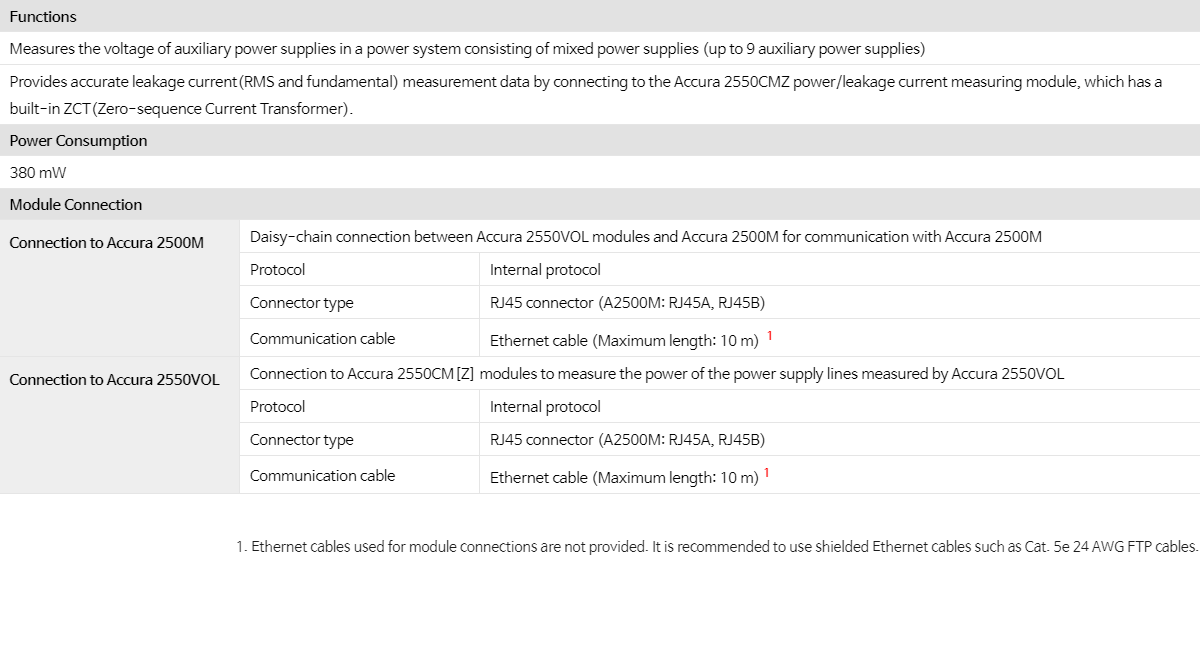

Functions
Measures the voltage of auxiliary power supplies in a power system consisting of mixed power supplies (up to 9 auxiliary power supplies)
Provides accurate leakage current(RMS and fundamental) measurement data by connecting to the Accura 2550CMZ power/leakage current measuring module, which has a built-in ZCT(Zero-sequence Current Transformer).
Power Consumption
380 mW
Module Connection
Connection to Accura 2500M	Daisy-chain connection between Accura 2550VOL modules and Accura 2500M for communication with Accura 2500M
	Protocol	Internal protocol
	Connector type	RJ45 connector (A2500M: RJ45A, RJ45B)
	Communication cable	Ethernet cable (Maximum length: 10 m) ¹
Connection to Accura 2550VOL	Connection to Accura 2550CM[Z] modules to measure the power of the power supply lines measured by Accura 2550VOL
	Protocol	Internal protocol
	Connector type	RJ45 connector (A2500M: RJ45A, RJ45B)
	Communication cable	Ethernet cable (Maximum length: 10 m)¹
