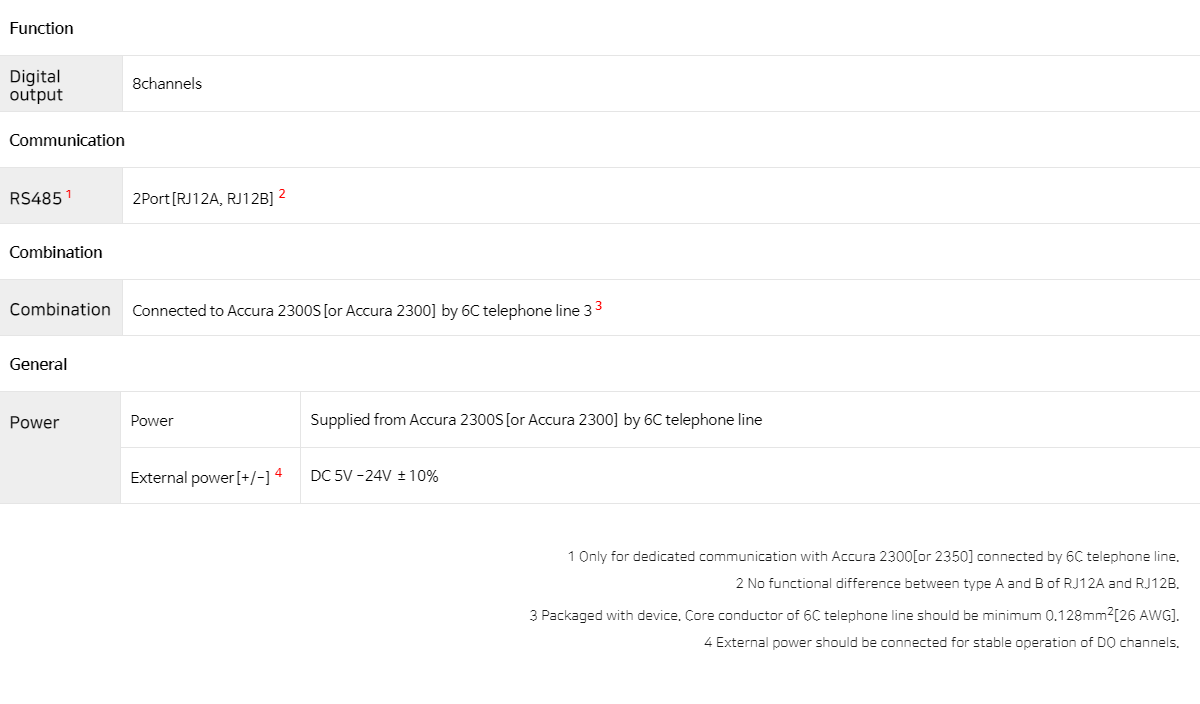

Connected to Accura 2300S(or 2300) through 6C telephone line 33
General
Power
Power
Supplied from Accura 2300S(or 2300) through 6C telephone line
External power(+/-)4
DC 5 V - 24 V ± 10%
1. Accura 2350-DO performs RS-485 communication with Accura 2300S or 2300 using the 6C telephone line.
2. RJ12A and RJ12B ports have the same functions.
3. It is provided with the product. The inner conducting wire of the 6C telephone line should be at least 0.128 mm2(26 AWG).
4. External power should be connected for stable operation of DO channels.
Accura 2350-DO
Accura 2350-DO
Power Supply
Connector type
Terminal block
Wire specification
1.5 - 3.5 mm2 (16 - 12 AWG), copper or aluminum
Power supply
DC voltage 5 V - 24 V ± 10 %1
Receives power from Accura 2300[S] through the RJ12 6C communication line2

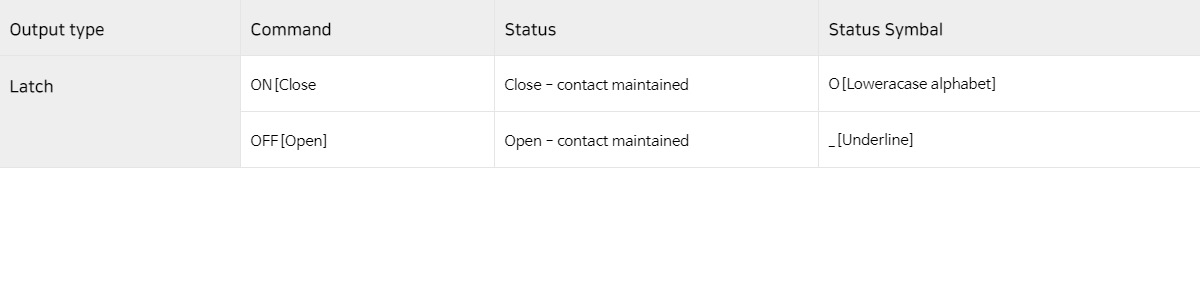

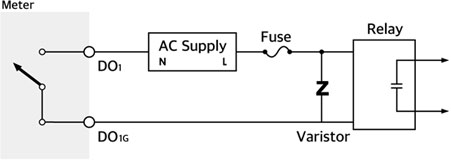

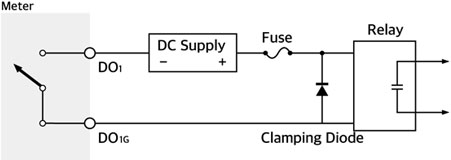

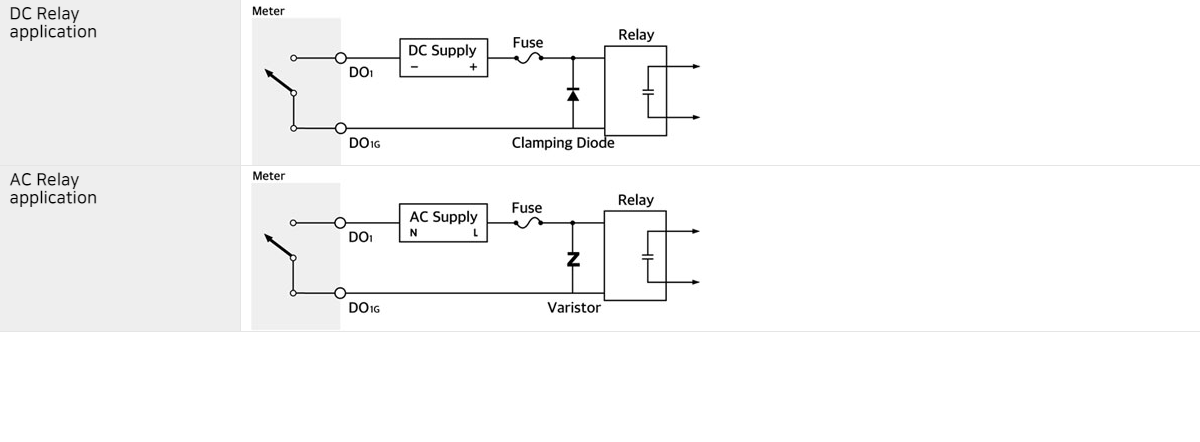

Output Type (Operation when Normal Polarity is Set)
Latch
Command 1
Closed contact is maintained.
Command 0
Open contact is maintained.
Periodic pulse5
Command 1
A pulse occurs periodically on the closed contact.
Command 0
After completion of the pulse that has occurred, pulse generation is stopped.
Uncountable pulse5
Command 1
A single pulse occurs on the closed contact. The command(Logic 1) issued after the occurrence of a single pulse is cleared automatically. Additional commands issued within the pulse period are ignored.
Command 0
It is unavailable because the command(Logic 1) is automatically cleared after pulse generation.
Countable pulse5
Command 1
A single pulse occurs on the closed contact. The command(Logic 1) issued after the occurrence of a single pulse is cleared automatically. Additional commands issued within the pulse period are counted and the counted number of pulses occur after the end of the pulse period. Pulses can be output according to the measured energy value.
Command 0
It is unavailable because the command(Logic 1) is automatically cleared after pulse generation.
General
Weight
180 g
Excluding mounting wings L/S
183 g
Including mounting wings L/S
1. When the external power supply is not connected to the Accura 2350-DO module, it operates with the internal power supplied through the RJ12 6C communication line.
2. When the external power supply is not connected to the Accura 2350-DO module, make sure to check if the power supply voltage operates properly considering a voltage drop may occur when the maximum current flows through the RJ12 6C communication line. If there is any problem in the power supply, you should additionally connect the external power supply to the module.

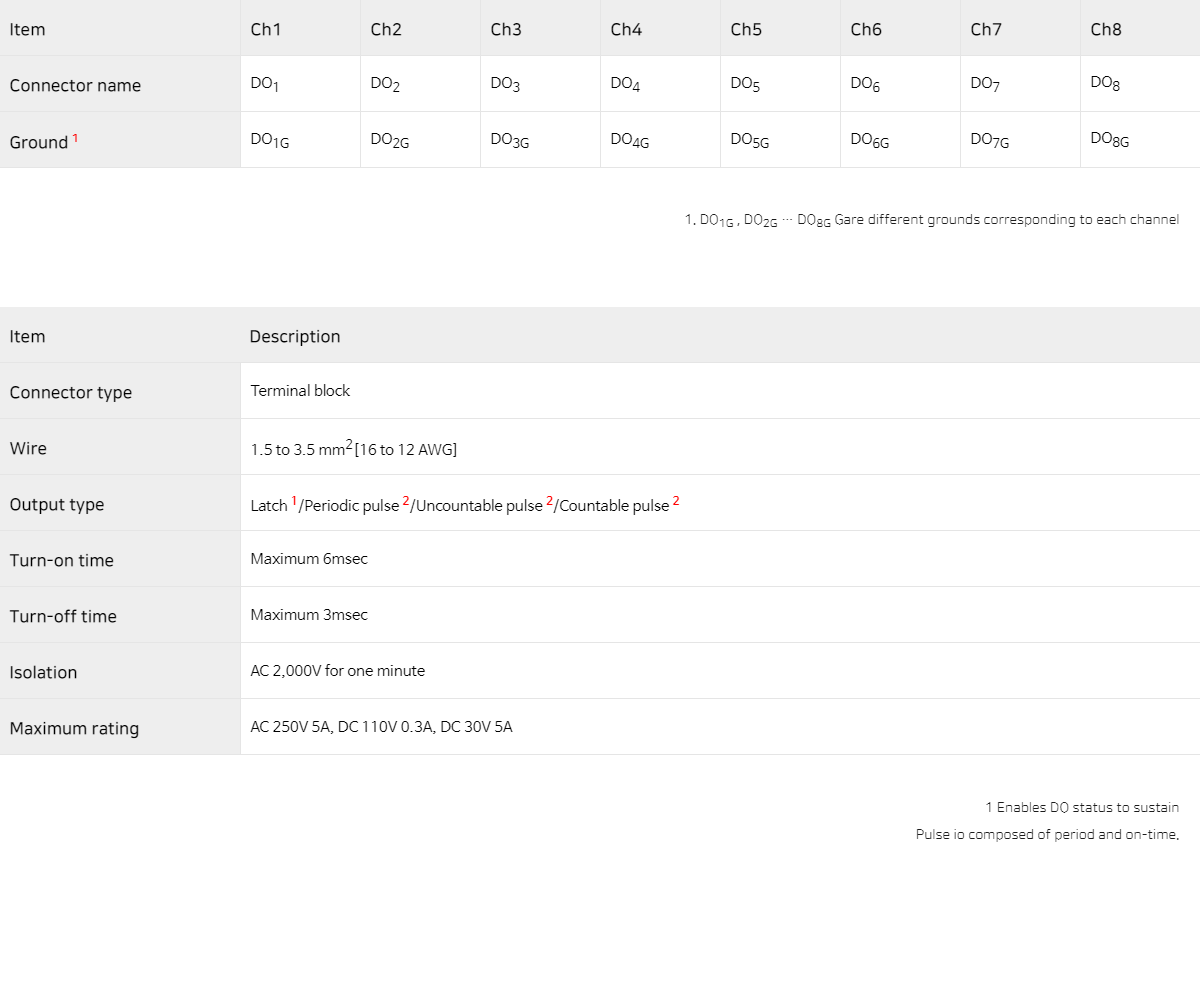

3. DO1G, DO2G … and DO8G are different grounds corresponding to each channel.
4. The operations of each digital output type are described in 'Output Type' below.
5. Pulse period and pulse on-time can be set via communication.
General Specifications
General Specifications

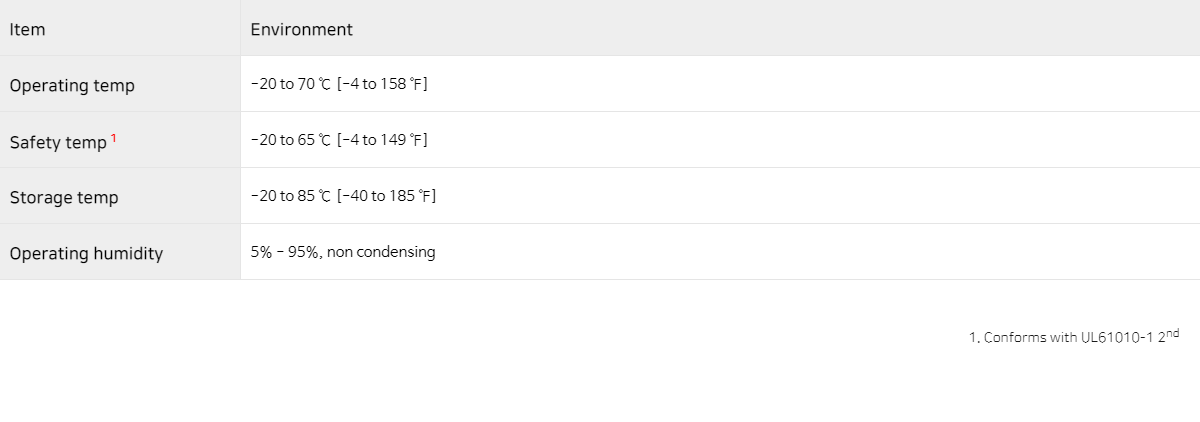

Environmental Conditions
Operating temperature
-20 - 60 ℃ (-4 - 140 ℉)
Storage temperature
-40 - 85 ℃ (-40 - 185 ℉)
Operating humidity
5 - 95 % (non-condensing)
Operating altitude
Up to 2,000 m
Operating environment
Pollution degree 2
General
Warranty period
2 years
